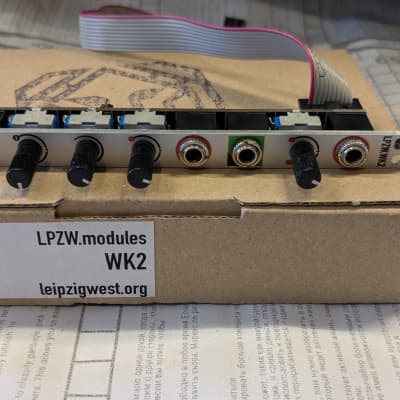

WK2

Modulation CV conditioner (Attenuverter, Offset, Slew Limiter)

****currently under redevelopment .. new version approx. Q4 2025**

2 channel attenuverter

• first channel input jack is normaled to selected internal reference DC (send constant voltage if nothing is plugged in)
• first channel input signal is normaled to 2nd channel input (spread one mod source to two mod destinations)
• first channel output is normaled to be added to second channel output (add two mod sources for one desitination)
• second channel has a offset (+/- 5V or +/- 10.5V via jumper)
• second channel input slew rate limiter (the signal eventually coming from channel 1 will not be affected by this)
