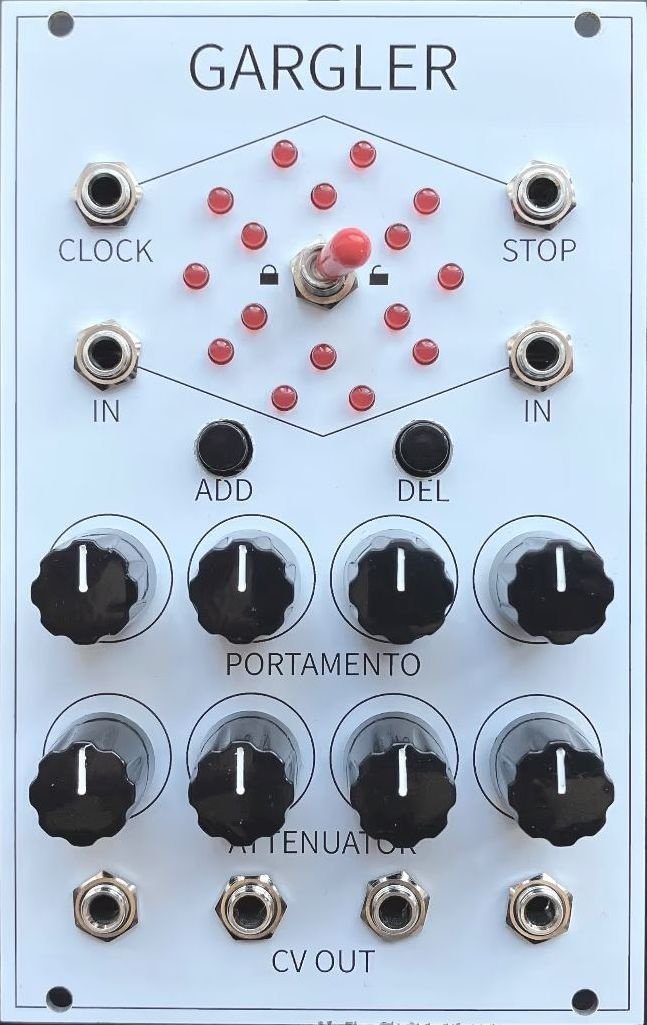

TOILmodular Gargler

4 lane chaotic shift-register based slewed CV generator

This Eurorack module provides four different outputs with chaotic CV values. It is based on an idea derived from the 8 Bit Cipher module from NonLinearCircuits.

Features
* Four different (but not independent) CV outputs with a range from 0V to 10V (not evenly distributed)
* Separate controls for portamento and attenuation for each CV output
* A clock input to drive the module
* Two optional external inputs from which a 16-stage shift register is influenced and the CV output values are being derived
* Two internal feedback loops normalled to each of the two input channels, so the module does not depend on any external input signal
* Buttons to add or delete single bits, influencing the CV values
* A control to stop the change of CV outputs
* A switch to lock the current 16 shift register stages and to bring the CV outputs into a 16-step sequence loop
* A demo of the module is available in this YouTube video:

This design is Open Source.

https://github.com/TOILmodular/GARGLER
