Dimensions
10 HP
44 mm deep

Available in all 1U formats

Current Draw
20 mA +12V
11 mA -12V
0 mA 5V
Price
$117 Price in €

This Module is currently available.

Specs are approved by the manufacturer

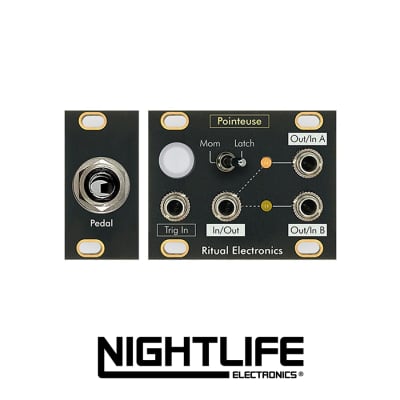

CV controlled bidirectional analog switch that can be used as a momentary footswitch adapter for Eurorack

Trig, Gate, Mute, Switch Everything!

Pointeuse has two states. It either connects In/Out to Out/In I or to Out/In II. You can change its state by pressing a footswitch (via the included adapter expander), the backlit button or by sending a voltage signal into the Trig In input making the module highly interactive and controllable.

Pointeuse behavior can be momentary (as long as the button is pressed for example) or latching (the signal switches each time the button is pressed).

The switch has a true bidirectionnal behavior (2:1 or 1:2).

If no jack is connected to In/Out, a 5V signal will be present alternatively at Out/In I and Out/In II.

Controls:
• Tactile & backlit button
• Trigger input
• Momentary / Latching switch

Technical characteristics:
• Trig In accepts any signals (threshold is 2.5V)
• No bleedthrough
• Clickless mute
• Do not attenuate input signals inc. 1V/oct
• Compatible with all momentary footswitch pedals & sustain pedals

Current consumption:
+12V: 20mA | -12V: 11mA | +5V: 0mA

Size:
10HP | 35mm deep
4HP expander | 44mm deep

Available with either Intellijel 1U or Pulp Logic 1U Tile faceplate.

https://www.ritualelectronics.com/products/1u-pointeuse
